EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Head Ø
Head
height
Neck Ø
Gap
Tap
Total
height

Material /
Color
Select
sample

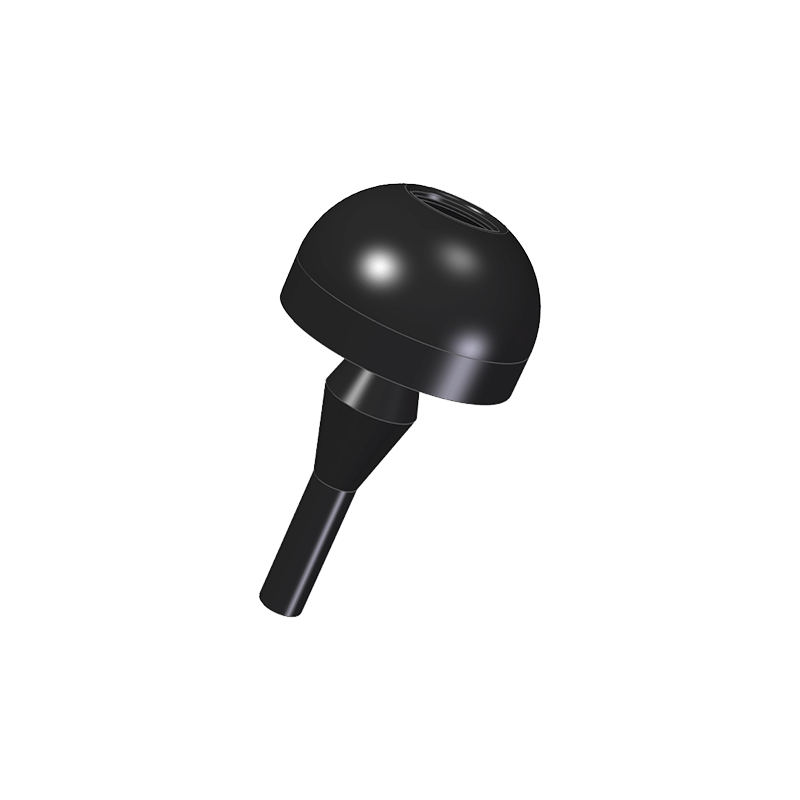

1279

10,0

6,0

2,5

1 - 2,5

2,0

18,5

-

EB

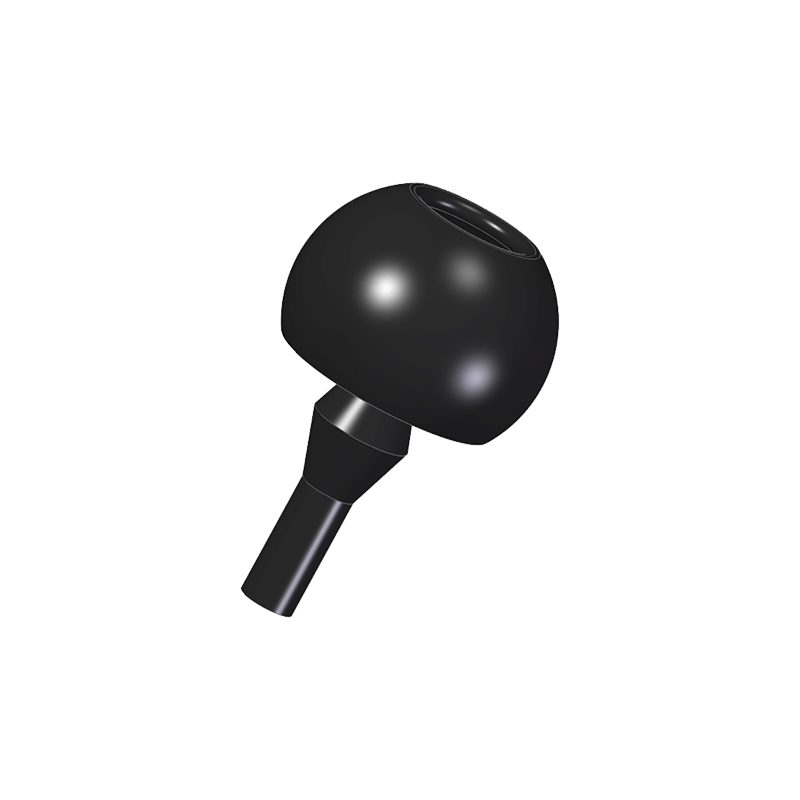

1280

14,5

10,0

3,8

1 - 2,5

3,0

23,5

-

EB

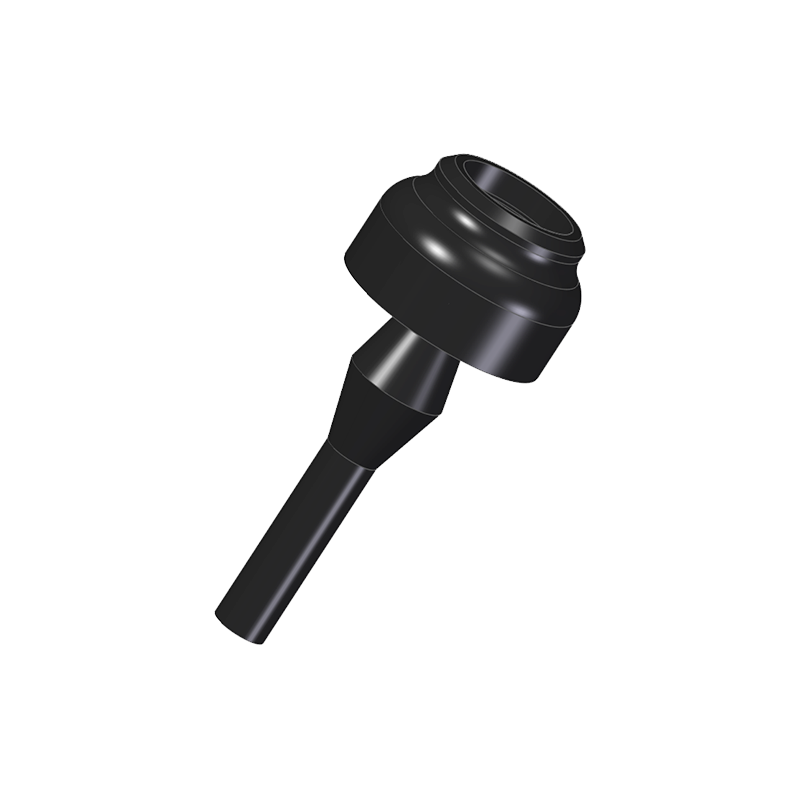

1351

8,0

5,0

2,5

1 - 3,0

2,0

19,0

6,5

EB

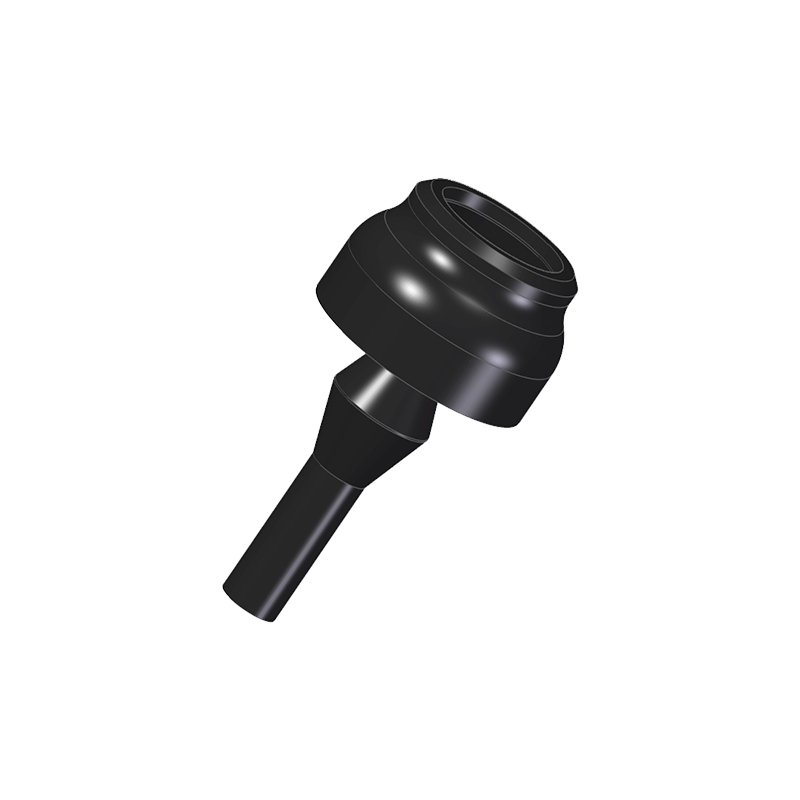

1352

11,0

7,0

3,2

1 - 3,0

2,8

21,0

9,0

EB

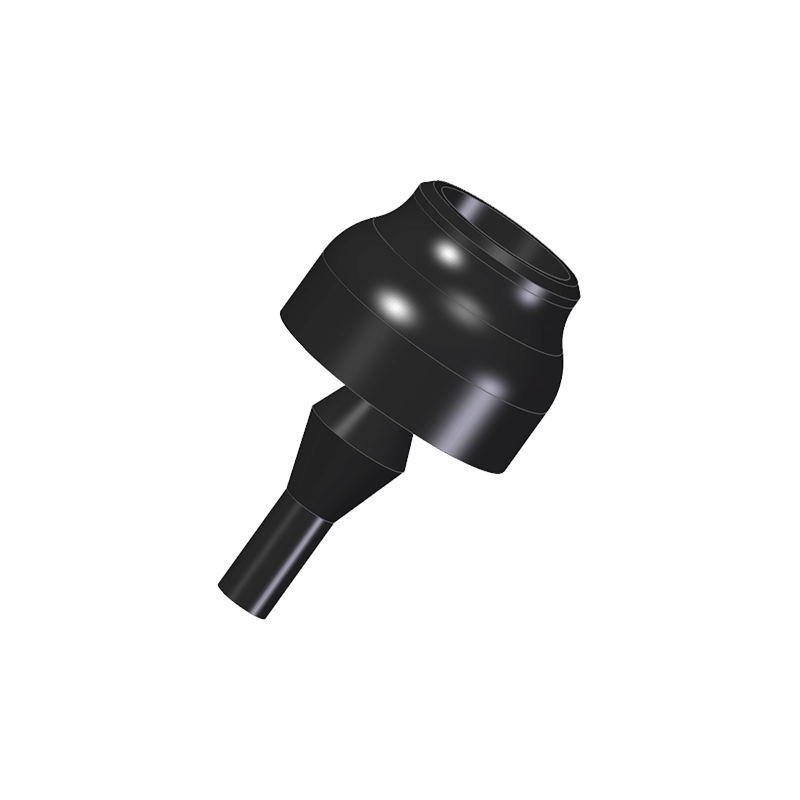

1353

14,0

10,0

3,8

1 - 3,0

3,0

23,3

10,0

EB

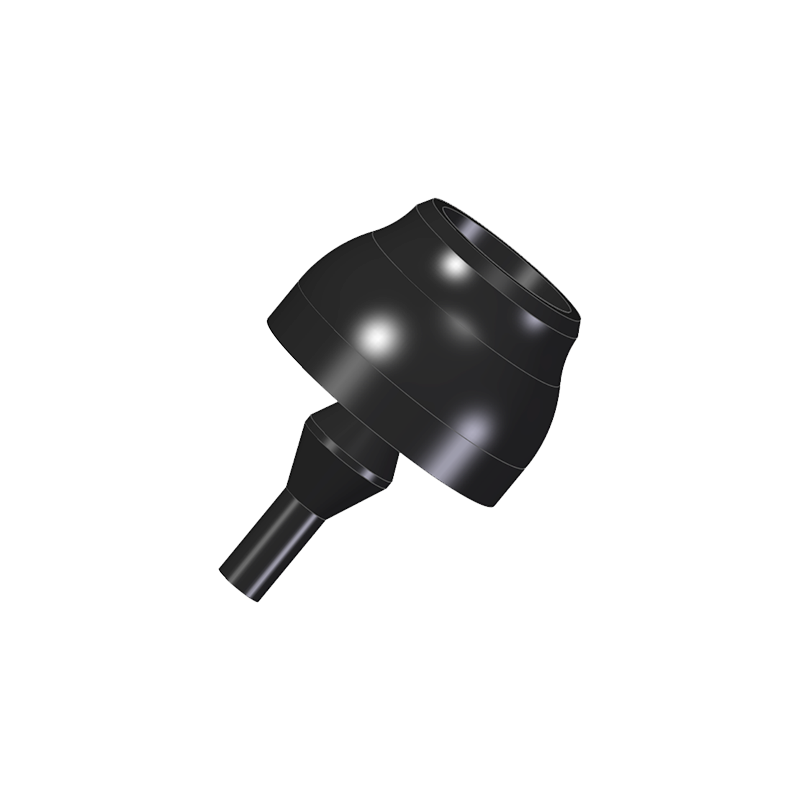

1354

17,0

11,8

4,2

1 - 3,0

3,0

25,0

12,5

EB

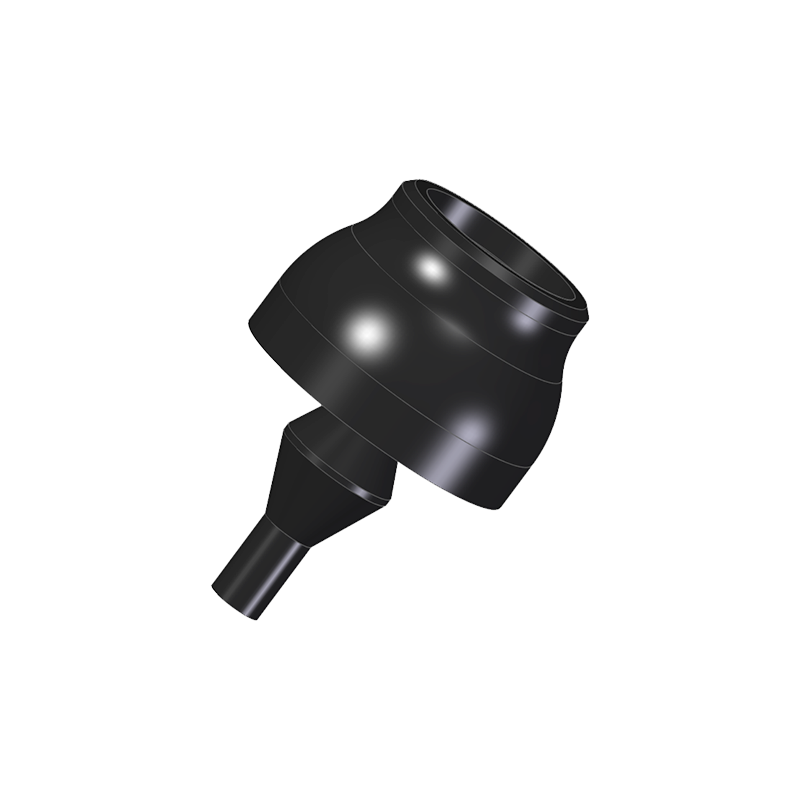

1355

20,5

14,0

5,1

2 - 4,0

3,7

29,6

15,3

EB

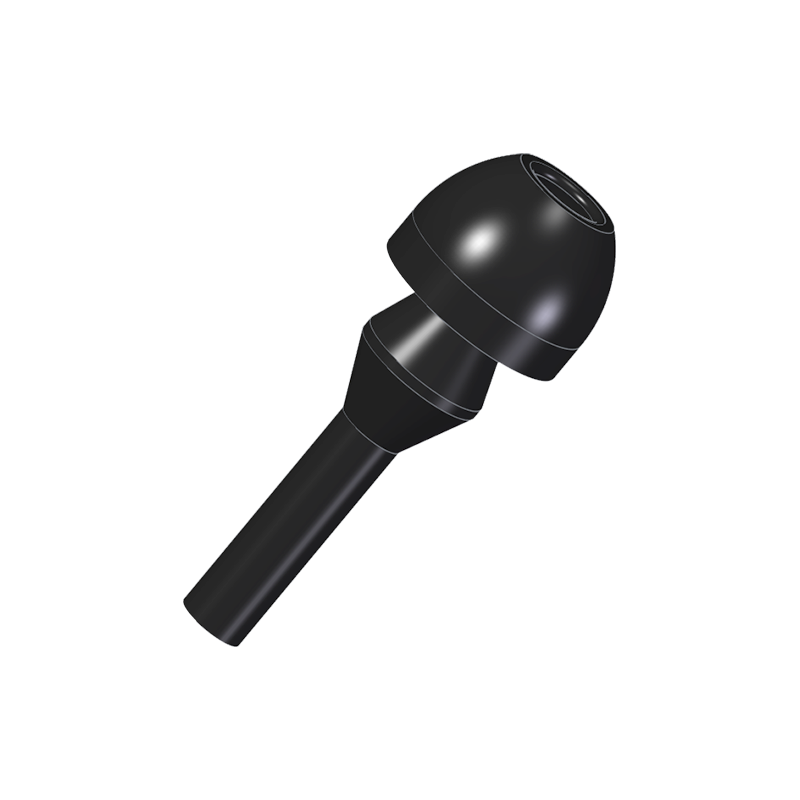

3501

9,2

6,5

4,0

1 - 3,0

3,2

24,0

-

EB

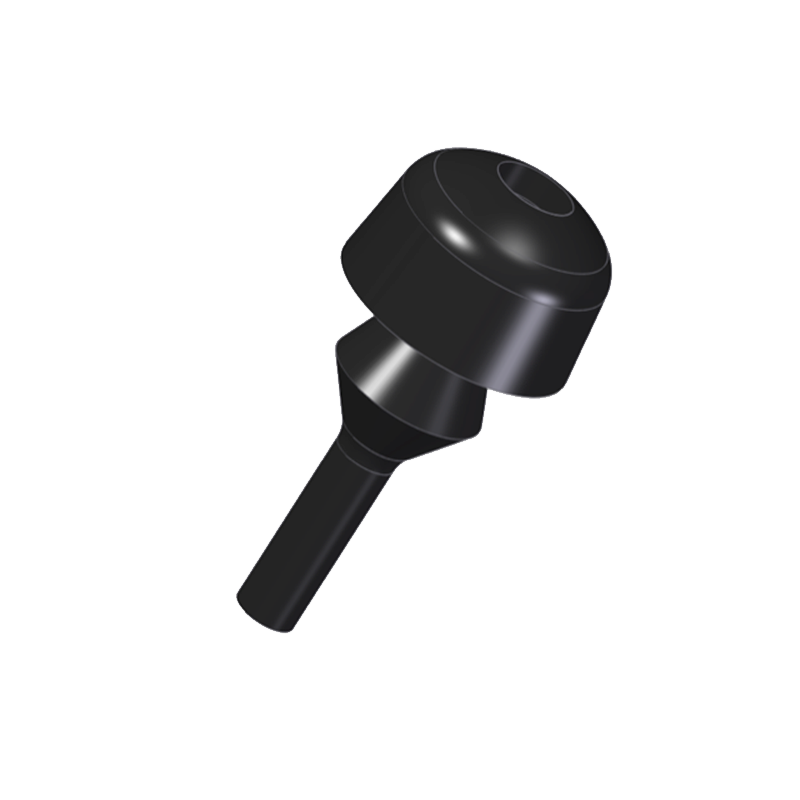

3502

12,0

7,5

5,0

1 - 3,0

3,0

25,0

-

EB

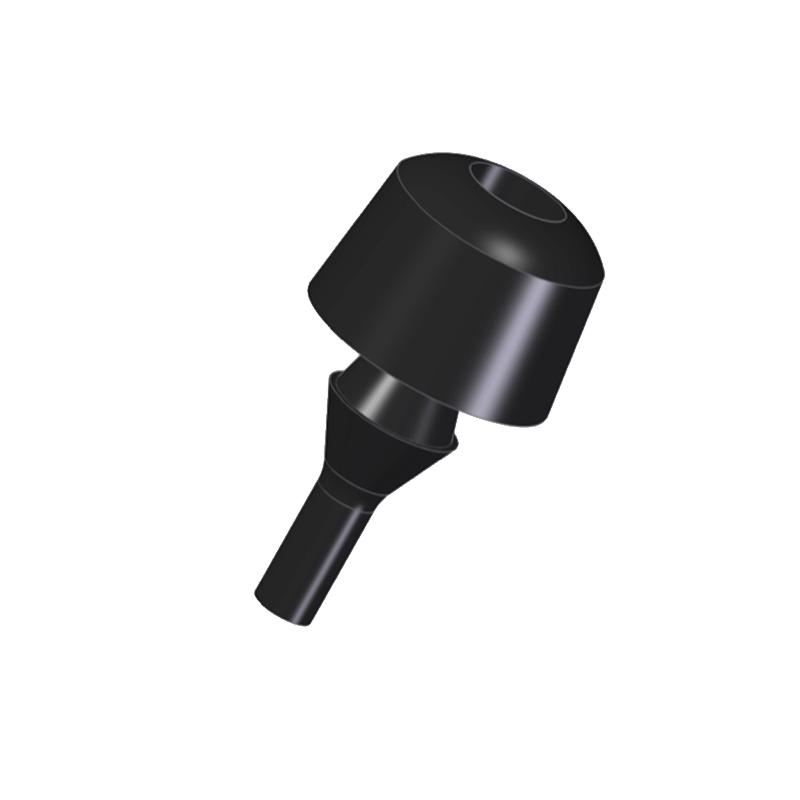

3503

15,0

10,5

5,2

1 - 3,0

3,5

27,5

-

EB

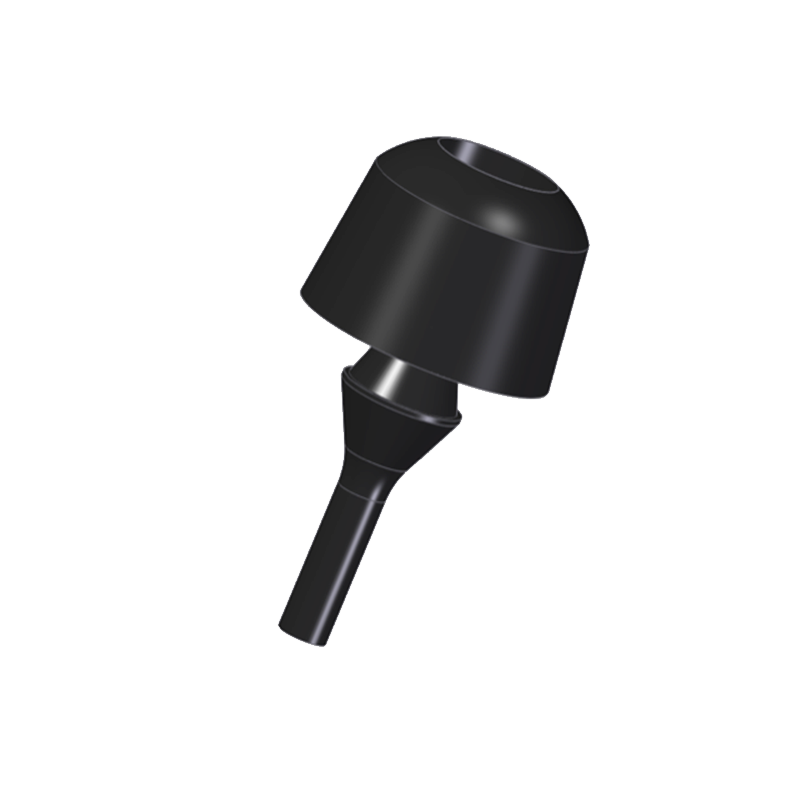

3504

18,5

13,5

5,5

1 - 3,0

3,5

36,0

-

EB

  • EB = EPDM, black
